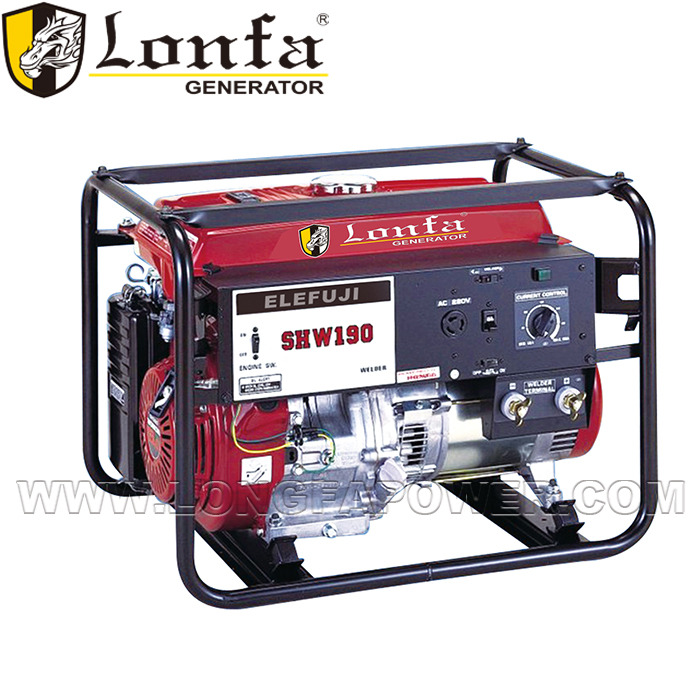

5kw honda power GX390 gasoline petrol welding welder generator
| NAME | ITEM | SHW190 | SHW210R | SHW300E |
| Engine | Engine Model | GX390 | GX620 | |
| Type | 4-Stroke,OHV,1cylinda | 4-Stroke,OHV,2 cylinda | ||
| Displacement(CC) | 389 | 614 | ||
| Bore x Stroke(mm) | 88x64 | 77x72 | ||
| Cooling system | Air cooling | |||
| Ignition system | Transistorized magneto ignition | |||
| Start system | Recoil/Electric | Electric | ||
| Generator | Rated voltage(V) | 220(AC) | 220(DC) | |
| Rating frequency(Hz) | 50/60 50/ 60 | 60 | ||
| Rated current | 9.1A(AC) | 15A(AC) | 10.0A(DC) | |
| Rated output 50Hz | 2.5kVA(AC) | 3.0kVA(AC) | 5.0kVA(AC) | |
| Rated output 60Hz | 3kVA(AC) | 3.5kVA(AC) | ||
| Rated power factor | 0.8/1.0 | |||
| Phase | Single | |||
| Type | 2-pole,rotating type | 24-pole,rotating type | ||
| DC Welder | Rated Max.current(A) | 140 | 180 | 280 |
| Load voltage(V) | 27.2 | 28 | 32 | |
| Current range(A) | 50-190 | 50-210 | 50-280 | |
| Max.current duty cycle(%) | 50 | 32 | 20 | |
| Applicable welding rod diameter(mm) | 2.5-5.0 | 2.5-5.0 | 2.5-6.0 | |
| Rated Revolving Speed(r/min) | 3600 | |||
| No-load voltage(A) | 70 | 52 | 82 | |
| Idle control | Automatic | |||
| Rectifier type | Six phase half wave rectifier | Three phase full wave rectifier | ||
| Other | Fuel tank capacity(L) | 17 | 25 | 30 |
| Length x width x height(mm) | 690x510x520 | 690x535x535 | 953x617x622 | |
| Net weight(kg) | 86 | 88 | 180 | |
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Taizhou City, Zhejiang Province, China, about 3 hours train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:What is the material of your products?
A: Only New material can be used for our products.
Materials for Generator: 100% Pure Crankcase, 100% Pure Copper Wire
Materials for Water Pump: 100% Pure Auminium Pump body and Crankcase
4.Q:What is Minimum Order quantity?
A: MOQ 50/100 pieces for different products.
You are welcomed to consult for details.
5.Q:How does your factory do regarding quality control?
A: From the internal parts to the outside packing, we not only make standard quality test,but also think ahead for a better solution. Except company QC system, We have achieved CE & SONCAP certificate.
