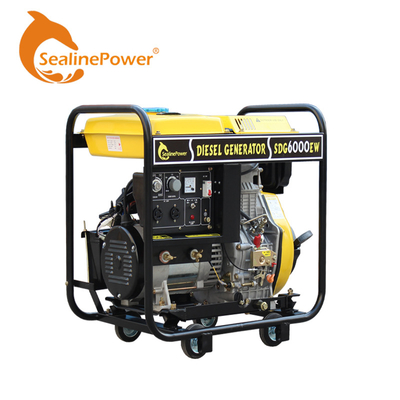

Open Type Welder Diesel Generator | ||
Generator | Model | SDG6500EW |
Rated Output(KVA) | 4.6/5.0 | |
Max Output(KVA) | 5.0/5.5 | |
Rated Frequency(Hz) | 50/60 | |
Rated AC Voltage(V) | 110/220, 120/240, 220/380, 240/400 | |
DC Outpu(V) | 12V/8.3A | |
Power Factor(cosθ) | 1/0.8(Three Phase) | |
Phase | Single or Three Phase | |
Starting System | Electric Starter | |
Noise Level(Dba/7m) | 68-72 | |
Fuel Tank Capacity(L) | 16 | |
Continuous Running Time(Hr) | 8.5/7.8 | |
Engine | Model | SE186FAE |
Power(HP) | 6.3 | |
Engine Type | Air-Cooled; Single-Cylinder; 4-Stroke; OHV | |
Fuel Type | 0#(Summer), -10#(Winter)Diesel Oil | |
Displacement(cc) | 418 | |
Min Fuel Consumption(g/kw/h) | 280 | |
Lube Oil Capacity(L) | 1.65 | |
WELDER | Welding no-load voltage(V) | 55-65 |
Working voltage(V) | 26-30 | |
Rated current(A) | 160 | |
Range of current(A) | 20-190 | |
Welding efficiency | 0.6 | |
Dimension & Packing | Dimension(L*W*H)(mm) | 910*530*740 |
Net Weight(kg) | 150 | |
Packing | In Strong Corrugated Board Carton | |
20FT Loading Quantity | 144 | |
40HQ Loading Quantity | 288 | |
Payment | Payment Terms | T/T or L/C |
Minimum Order Quantity | 5 PCS | |
Delivery Lead Time | Within 15days after received the deposite | |
Warranty | One Year or 500 Working Hours | |
We Afford: Our Services
(1). Durable and stable power.
(2). Efficient manufacturing speed & quality.
(3). Logo design & colour customize.(OEM & ODM is available)
(4). Professional technical support & Perfect sales & after-sale service.
(5). Timely reply in 12hours to your inquiries or questions
(6). Well controlled spare parts supply chain.
Company Information
Changzhou SealinePower Generation CO.,LTD is located in the beautiful city Changzhou, a famous production base for diesel power products. SealinePower is specialized in manufacturing and exporting engine, generators, water pump, construction machinery, etc.The company with 10000 square meter workshop and employs more than 100 staff workers. It operates an advance production line with whole set of inspection, testing equipment and a yearly capacity of 200,000 sets of machines. SealinePower have get through CE, SONCAP, GS, ROHS and ISO9001 certifications which could meet all export requirements.
SealinePower closed-knit group have professional engineers, skilled QC members experienced sales team, could give customers best sales-service. Due to reasonable price, high efficiency and energy saving performance, SealinePower is widely praised by clients in over 80 countries and regions, such as Europe, Southeast Asia, The Middle East Africa, etc.
FAQ
1.What about your factory?
Our factory is located in Changzhou, a famous production base for diesel power products. We are specialized in manufacturing and exporting engine, generators, water pump, construction machinery, etc.
We pay more attention to the products in every detail with 100% testing before delivery.
Our factory is 30mins from Changzhou Benniu Airport by car, 2hours from Shanghai Station by High-speed train, 3hours from Shanghai Airport by car.
2.What is the difference between rated power & maximum (surge) power?
Rated power describes the amount of power the portable generator can produce continuously. Maximum power is the power that the generator can produce for short periods of time. Motor starting is a good example of maximum power requirements.
3. What is the difference between “kw” & “kva” ?
1kw=0.8kva 1kva=1.25kw
4.How about your warranty maintainance ?
One year or 500 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our products instead of external or natural reasons, we will supply the relevant spare parts free of charge for maintenance (refer to the owner’s manual ); after the warranty period, we can supply the required spare parts for you under cost prices.
5.Where can I purchase spare parts?
Parts can be purchased through any local dealers. Or you can buy parts from our factory. We ensure spare parts supply chain. Our Part details are located in the installation instructions.
6.What should I pay attention?
Generators can be used during a wide variety of weather temperatures, but should be protected from the elements when not in use to prevent shorting and rusting; the generator must be properly grounded safely, or you will run the risk of electrocution.
